Power Reserve

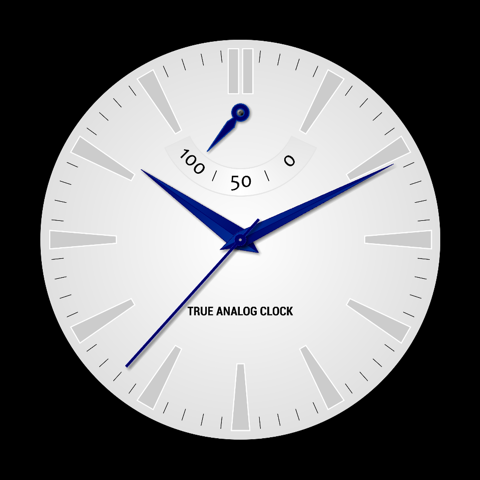

Clock with power reserve indicator

Description

Clock with power reserve feature that shows the battery level. Power reserve indicator implemented as a custom type hand with pair lines of code.

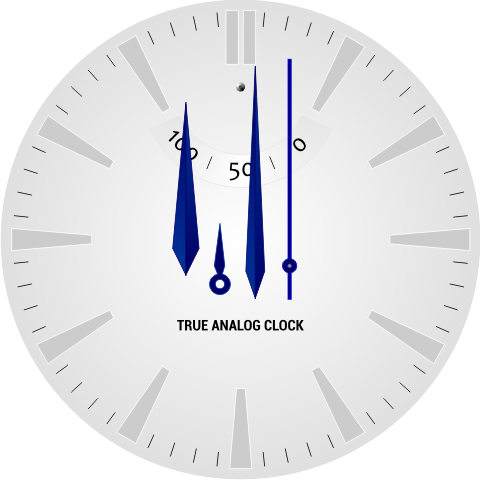

Anatomy

Round face with 3 standard hands and custom retrograde hand for power reserve indicator at 12 o'clock.

XML Settings File

<?xml version="1.0" encoding="utf-8"?>
<TrueAnalogClock
    face="power_reserve_face"
    useSystemTime="true">

    <hand
        angleOffset="135"
        angleRange="90"
        image="power_reserve_hand_power"
        axisFacePoint="1021:372"
        axisPoint="47:262"
        shadow="true"
        shadowOffset="5:5"
        type="Custom"
        name="Power"/>

    <hand
        image="power_reserve_hand_hour"
        axisFacePoint="1020:1020"
        axisPoint="58:621"
        shadow="true"
        shadowOffset="7:7"
        type="Hour"/>

    <hand
        image="power_reserve_hand_minute"
        axisFacePoint="1020:1020"
        axisPoint="42:872"
        shadow="true"
        shadowOffset="9:9"
        type="Minute"/>

    <hand
        image="power_reserve_hand_second"
        axisFacePoint="1020:1020"
        axisPoint="31:871"
        shadow="true"
        shadowOffset="11:11"
        type="Second"/>

</TrueAnalogClock>

Manual code

The code finds all hands with "Power" name and then sets current battery parameters as value and value range.

Object[] hands = clock.findHands("Power");
if (hands.length > 0) {
  IntentFilter iFilter = new IntentFilter(Intent.ACTION_BATTERY_CHANGED);
  Intent batteryStatus = registerReceiver(null, iFilter);
  for (Object item : hands) {
    TrueAnalogClockHand hand = (TrueAnalogClockHand) item;
    if (batteryStatus != null) {
      hand.setValueRange(batteryStatus.getIntExtra(BatteryManager.EXTRA_SCALE, -1));
    } else hand.setValueRange(10);
    if (batteryStatus != null) {
      hand.setValue(batteryStatus.getIntExtra(BatteryManager.EXTRA_LEVEL, -1));
    } else hand.setValue(0);
  }
}
